Pugmills
We import and supply excellent quality Pugmills from FREMA (Taiwan) and VENCO (Australia). Below is a list of pugmills that are available in Sam Mui Kuang Pottery.
Summary of Pugmils that we supply:- Frema QQ-3S
- Frema QQ-90
- Frema MQ-25
- Frema QQ-1600/QQ-75
- VENCO 75mm (3") 400lb/hr
- VENCO 100mm (4") 1200lb/hr
For more information regarding the product and/or the price, feel free to contact us or email us.

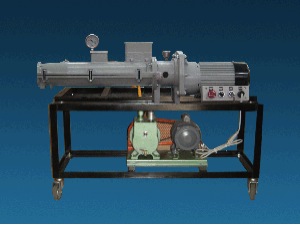

Frema QQ-3S
The Frema QQ-3S
Specifications:
- Aluminium barrels, with quick lock screws
- Main motor: 1HP (110/220V 1PH)
- Vacuum pump: 3/4HP (110/220V 1PH)
- Nozzle diameter: 3" (75mm)
Standard Accessories:
- Clay rest
- Clay Cutter
- Control panel
- Emergency STOP switch

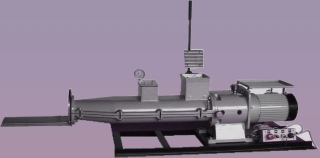

Frema QQ-90
The Frema QQ-90
Specifications:
- Aluminium barrels, with quick lock screws
- Main motor: 2HP (1.5KW 220V 1 PH)
- Vacuum pump: 3/4HP (110/220V 1 PH)
- Nozzle diameter: 3.5" (90mm)
- Capacity:400 - 600kg/hr
- Hopper size: 130mm X 130mm
- Pugmill weight: 90kg
- Vacuum pump weight: 17kg
- Shipping weight: 137kg
Standard Accessories:
- Clay rest
- Clay Cutter
- Control panel
- Emergency STOP switch

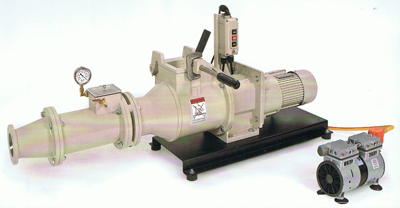

Frema MQ-25
The Frema MQ-25
Specifications:
- Aluminium casting barrels and hopper lid
- Stainless steel auger
- Main motor: 1HP, 110/220V, 60HZ, 1PH
- Vacuum pump: 300W
- Mixing Capacity: 25 lbs per barch
- Pug speed: 800lbs/hr.
- Output nozzle dia.: 3-1/4" (82mm)
- Hopper 6" x 6" square
Frema QQ-1600/QQ-75
The Frema QQ-1600/QQ-75
QQ-1600 Specifications:
- Aluminium barrels, with quick lock screws
- Stainless steel augers (1 long + 1 short)
- Output nozzle dia.: 3" (75mm)
- Hopper size: 4-1/4" x 4-1/4" (108 x 108mm)
- Vacuum pump: 300w
- QQ-1600 1HP, 110/220V, 1PH, with capacity 800lbs/hr, or
- QQ-1600 2HP, 220V, 1PH, with capacity 1600 lbs/hr
QQ-1600 Standard Accessories:
- Clay rest
- Clay Cutter
- Control panel
- Emergency STOP switch
- Overload protecting switch
- Optional Acc.: Stand
QQ-75 Specifications:
- Main motor: 1HP, 110/220V, 1PH
- Capacity: 800 lbs/hr
- Output nozzle dia.: 3" (75mm)
- Hopper size: 4-3/4" x 4-3/4" (120 x 120mm)
- Optional Acc.: Vacuum pump 300W
VENCO 75mm (3") 400lb/hr
VENCO 75mm (3") 400lb/hr
Features:
- Stainless steel fasteners used throughout for easy removal after years of use
- Marine grade aluminium barrel, norminal 25-year service life
- Generously-sized feed hopper with stainless safety screen, passes strict CE safety certification
- High capacity industrial gearbox (no belts). Enclosed fan cooled motor with overload protection rated for continuous operation
- Low speed, piston type vacuum pump with water/dirt trap
- Side-plates for easy shredder screen removal (3.5", 4")
- All steel components electroplated and powder coated for superior corrosion protection
- All stainless steel auger
- Backed by comprehensive 3-year warranty

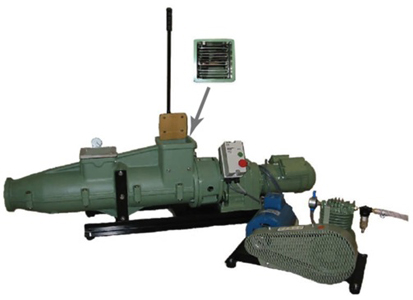

VENCO 100mm (4") 1200lb/hr
VENCO 100mm (4") 1200lb/hr
Features:
- Stainless steel fasteners used throughout for easy removal after years of use
- Marine grade aluminium barrel, norminal 25-year service life
- Generously-sized feed hopper with stainless safety screen, passes strict CE safety certification
- High capacity industrial gearbox (no belts). Enclosed fan cooled motor with overload protection rated for continuous operation
- Low speed, piston type vacuum pump with water/dirt trap
- Side-plates for easy shredder screen removal (3.5", 4")
- All steel components electroplated and powder coated for superior corrosion protection
- All stainless steel auger
- Backed by comprehensive 3-year warranty
